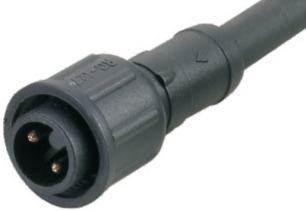

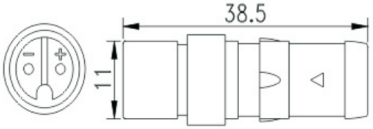

M14 series waterproof male and female connector
|
Description |
Molded with Cable,Thread,Riveting |
|
|
Photo |
|
|
|
Drawing |
|
|
|
Type |
RC-063 |
RC-064 |
|
Contacts Numbers |
2 |
2 |
|
Voltage Rating |
300V |
300V |
|
Current Rating |
10A |
10A |
|
Fit wire |
<=1.0mm² |
<=1.0mm² |
|
Mechanical Life |
1000 |
1000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
||
|

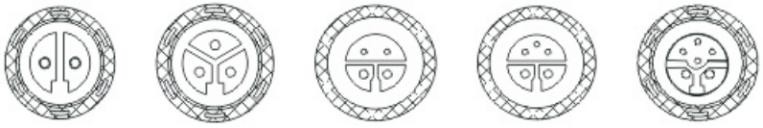

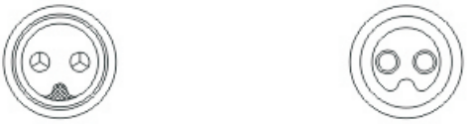

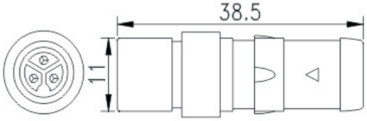

Pin Layout |
|
|

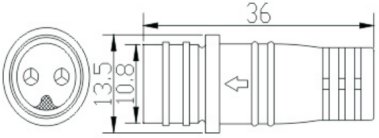

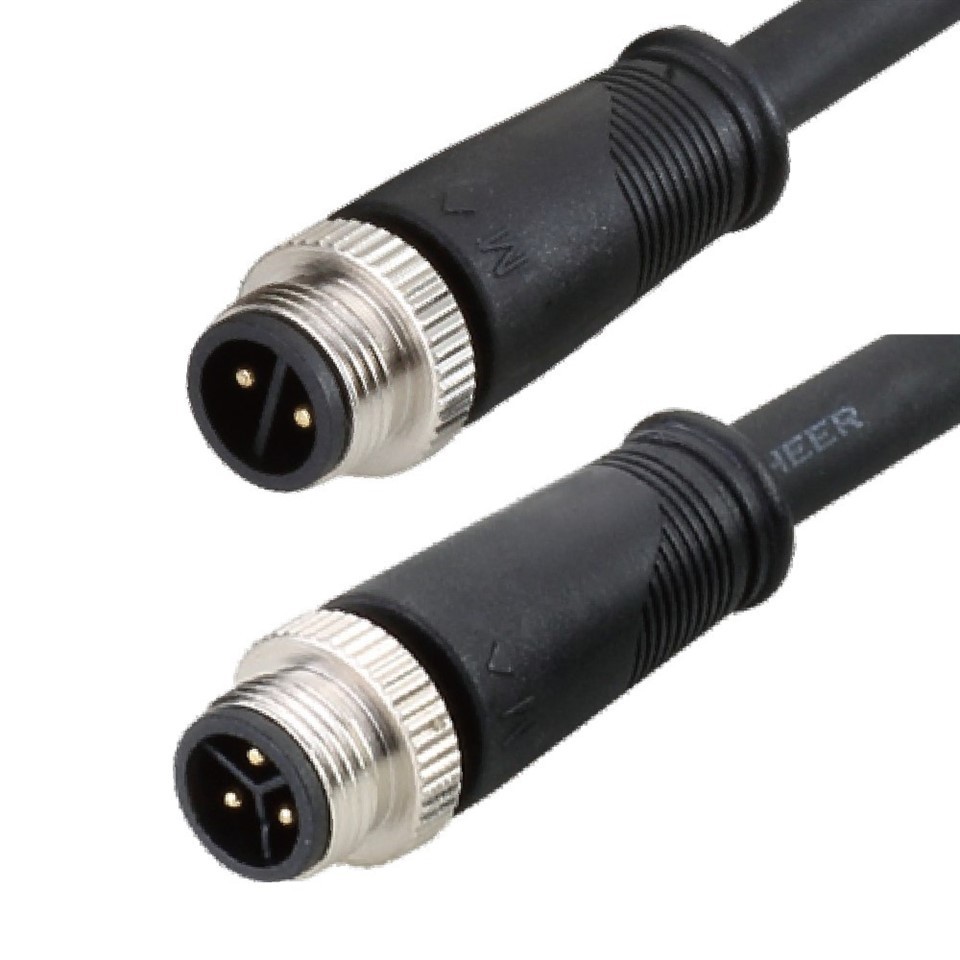

M14 series waterproof male connector
|
Description |
Molded with Cable,Thread,Riveting |
|
|
Photo |
|
|
|
Drawing |
|
|
|
Type |
RC-125 |
RC-159 |
|
Contacts Numbers |
2 |
3 |
|
Voltage Rating |
300V |
300V |
|
Current Rating |
10A |
10A |
|
Fit wire |
<=1.0mm² |
<=1.0mm² |
|
Mechanical Life |
1000 |
1000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
||
|
Pin Layout |
|
|

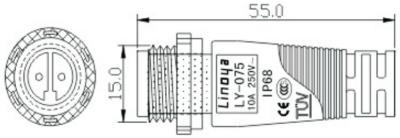

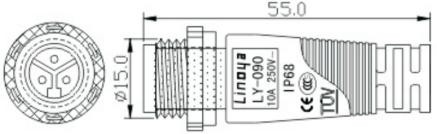

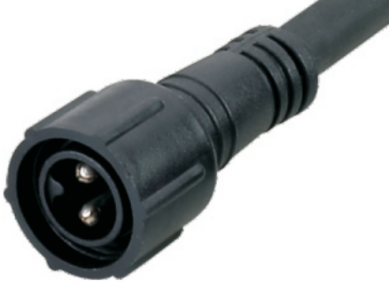

M15 series waterproof male connector
|
Description |
Molded with Cable,Thread,Solder |
|
|
Photo |
|
|
|
Drawing |
|
|
|
Type |
LY-075 |
LY-090 |
|
Contacts Numbers |
2 |
3 |
|
Voltage Rating |
300V~500V |
300V~500V |
|
Current Rating |
10~15A |
10～15A |
|
Fit wire |
<=2.08mm² |
<=2.08mm² |
|
Mechanical Life |
2000 |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
|
|
|
Pin Layout |
|
|

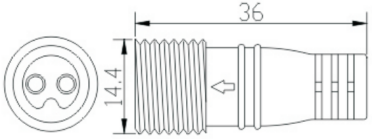

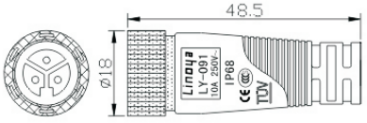

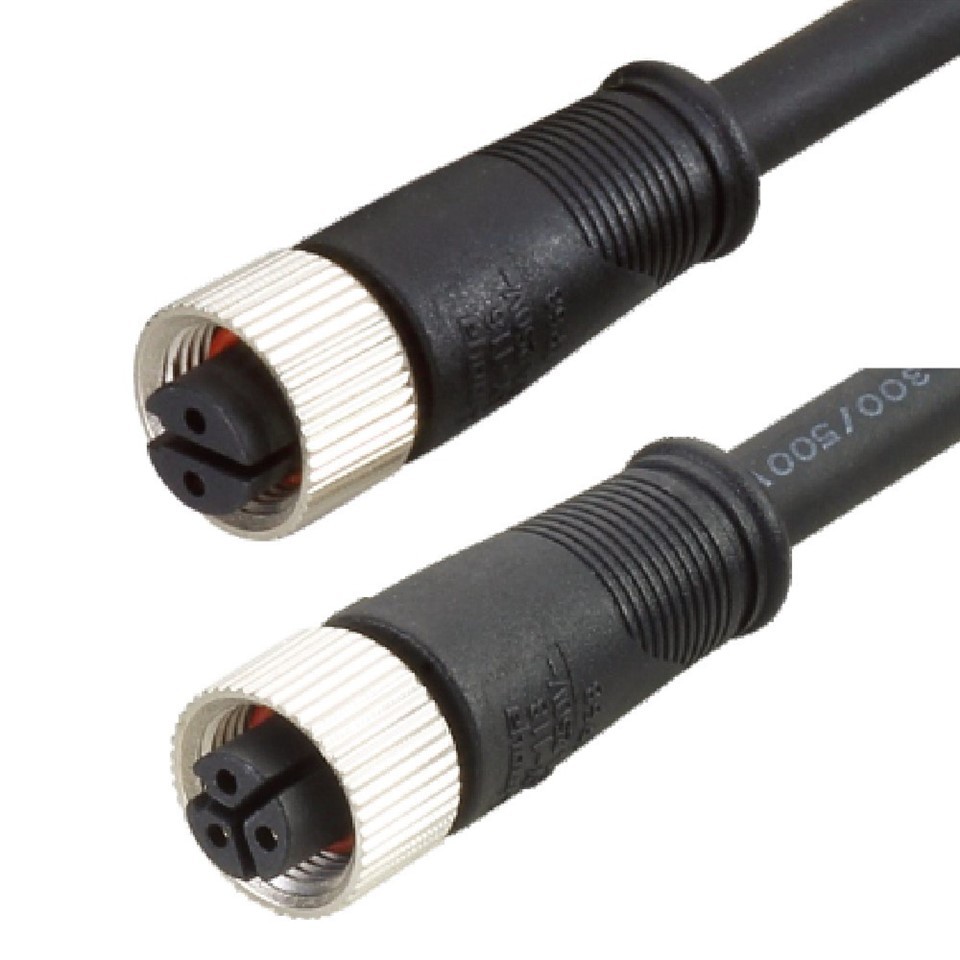

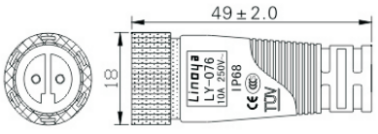

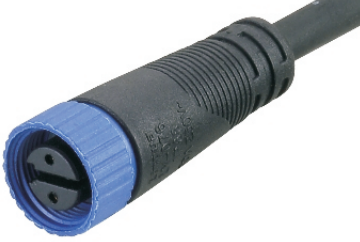

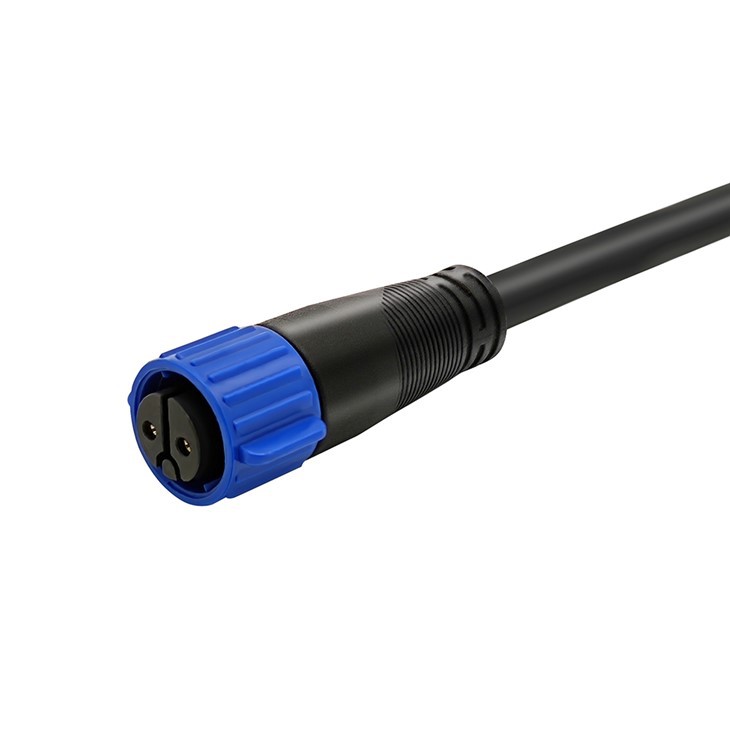

M15 series waterproof female connector
|
Description |
Molded with Cable,Thread,Solder |
|
|
照片 Photo |
|
|
|
Drawing |
|
|
|
Type |
LY-076 |
LY-091 |
|
Contacts Numbers |
2 |
3 |
|
Voltage Rating |
300V～500V |
300V~500V |
|
Current Rating |
10～15A |
10～15A |
|
Fit wire |
<=2.08mm² |
<=2.08mm² |
|
Mechanical Life |
2000 |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
|
|
|
Pin Layout |
|
|

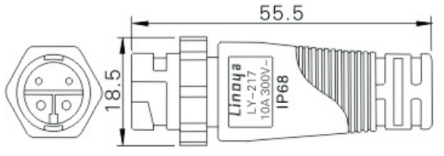

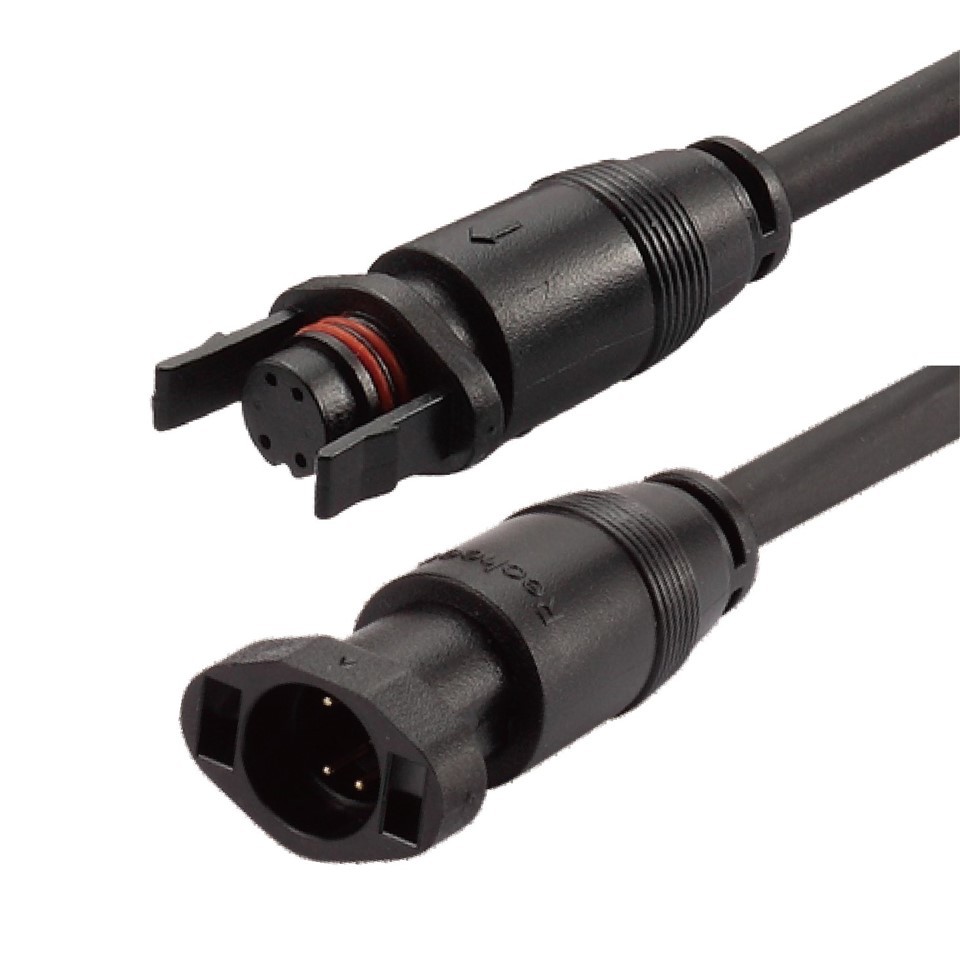

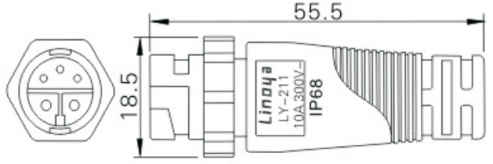

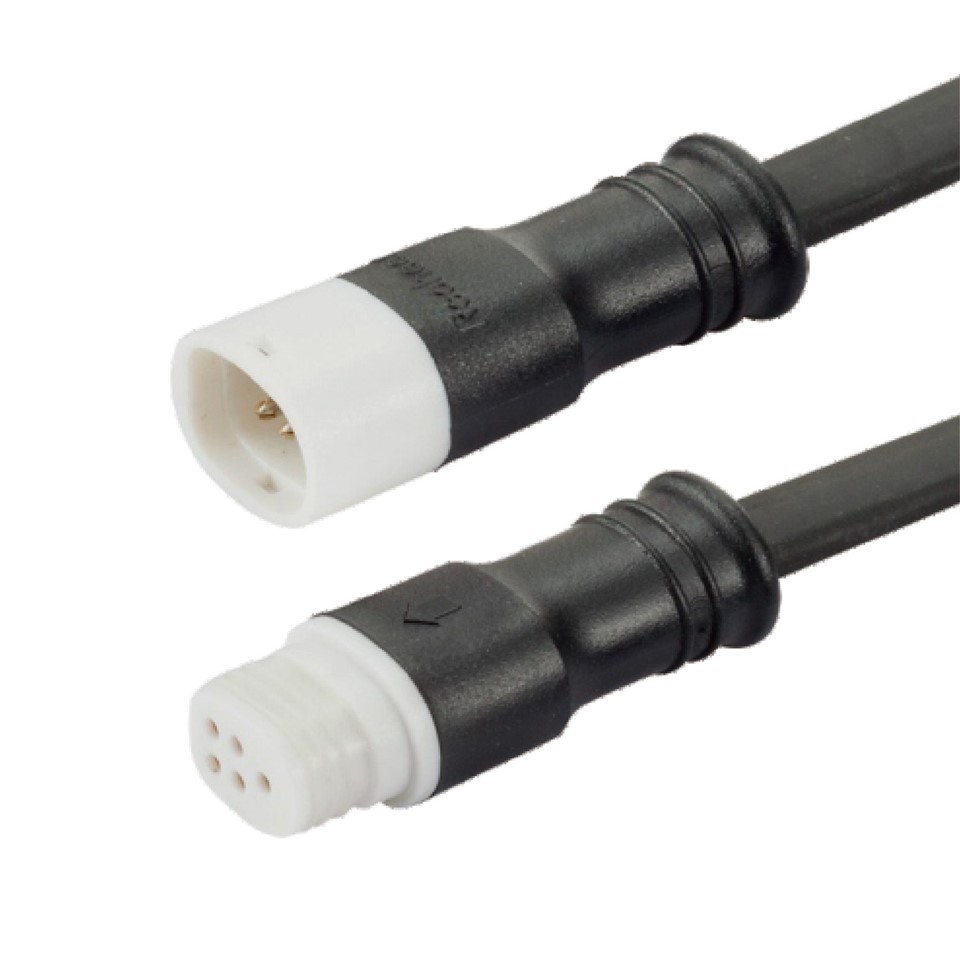

M15 series quick-lock into the waterproof male connector
|
Description |
Molded with Cable,quick-lock into,Thread,Solder |
|
|
Photo |
|
|
|
Drawing |
|
|
|
Type |
LY-217 |
LY-211 |
|
Contacts Numbers |
4 |
5 |
|
Voltage Rating |
300V |
300V |
|
Current Rating |
10A |
10A |
|
Fit wire |
<=1.0mm² |
<=1.0mm² |
|
Mechanical Life |
2000 |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
|
|
|

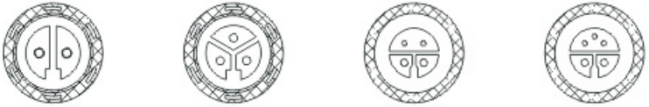

Pin Layout |
|
|

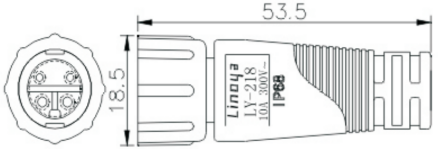

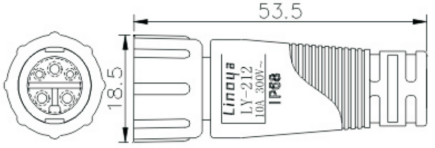

M15 series quick-lock waterproof female connector
|
Description |
Molded with Cable,Quick-lock,Thread,Solder |
|
|
Photo |
|
|
|
Drawing |
|
|
|
Type |
LY-218 |
LY-212 |
|
Contacts Numbers |
4 |
5 |
|
Voltage Rating |
300V |
300V |
|
Current Rating |
10A |
10A |
|
Fit wire |
<=1.0mm² |
<=1.0mm² |
|
Mechanical Life |
2000 |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
|
|
|
Pin Layout |
|
|

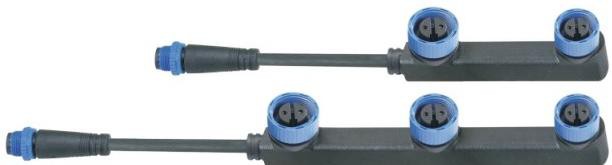

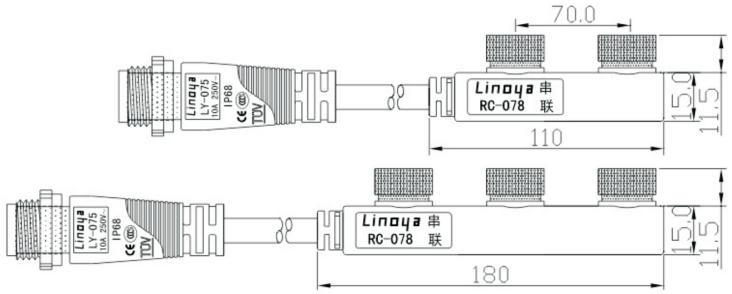

M15 series deconcentrator
|
Description |
Molded with Cable,Thread,Solder |
|
Photo |
|
|
Drawing |
|
|
Type |
LY-078 |
|
Contacts Numbers |
2~5 70mm |
|
Voltage Rating |
300V |
|
Current Rating |
10~15A |
|
Fit wire |
<=2.08mm² |
|
Mechanical Life |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
Waterproof Level |
IP68 |
|
Pin Layout |
|
|
remark |
2～6 side by side,each interval of 70 mm,can be done in series and in parallel |

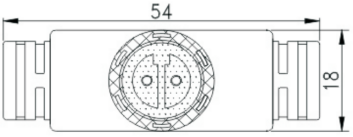

M15 series deconcentrator
|
Description |
Molded with Cable,Thread,Solder |
|
Photo |
|
|
Drawing |
|
|
Type |
LY-078 |
|
Contacts Numbers |
2~3 |
|
Voltage Rating |
300V |
|
Current Rating |
10~15A |
|
Fit wire |
<=2.08mm² |
|
Mechanical Life |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
Waterproof Level |
IP68 |
|
Pin Layout |
|
|
remark |

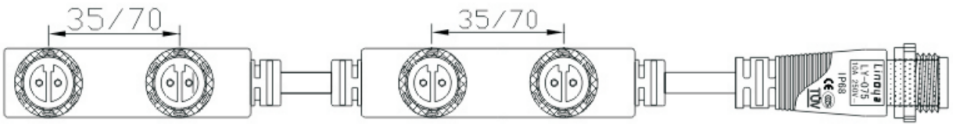

Side-by-side 2~6 positions, available in 2~4 + 2~6 configurations with 35/70mm pitch per position, capable of series and parallel wiring. |

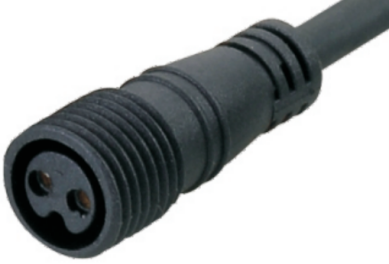

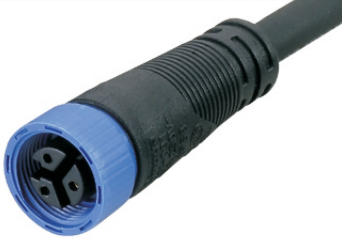

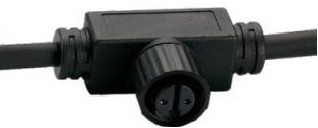

M15 T series waterproof female connector
|
Description |
Molded with Cable,Thread,Solder |
|
|
Photo |
|
|
|
Drawing |
|
|
|
Type |
LY-078-1 |
LY-276-1 |
|
Contacts Numbers |
2~6 |
2~6 |
|
Voltage Rating |
300-500V |
300-500V |
|
Current Rating |
10~16A |
10~16A |
|
Fit wire |
<=2.5mm² |
<=2.5mm² |
|
Mechanical Life |
2000 |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
|
|
|
Pin Layout |
|
|

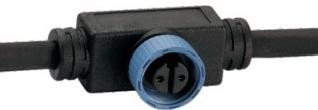

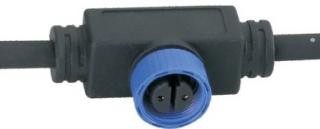

M15 T/L series waterproof female connector
|
Description |
Molded with Cable,Thread,Solder |
|
|
Photo |
|
|
|
Drawing |
|
|
|
Type |
LY-078-T |
LY-078-L |
|
Contacts Numbers |
2~3 |
2~3 |
|
Voltage Rating |
300V~500V |
300V~500V |
|
Current Rating |
10A |
10A |
|
Fit wire |
<=1.5mm² |
<=1.5mm² |
|
Mechanical Life |
2000 |
2000 |
|
Operating Rating |
-40℃~105℃ |
|
|
Waterproof Level |
IP68 |
|
|
To obtain certification |
|
|
|
Pin Layout |
|
|
