Model Rated Voltage Max Voltage |
(8/20uS) Discharge Capacity IN IMAX |
MLV Response Time |
||||
|
LYSPD06A |
100-300Vac |
320Vac |
3kA |
6kA |
L-N:1260 L-PE:1680 N-PE:1650 |
25nS |
|
LYSPD10A |
100-300Vac |
320Vac |
5kA |
10kA |
L-N:1460 L-PE:2210 N-PE:2210 |
25nS |
|
LYSPD20A |
100-300Vac |
320Vac |
10kA |
20kA |
L-N:1980 L-PE:2820 N-PE:2820 |
25nS |
|
LYSPD10A-480 |
300-500Vac |
510Vac |
5kA |
10kA |
L-N:1960 L-PE:2490 N-PE:2530 |
25nS |
|
LYSPD20A-480 |
300-500Vac |
510Vac |
10kA |
20kA |
L-N:2380 L-PE:2910 N-PE:2960 |
25nS |
|
Model Rated Voltage Max Voltage |
(8/20uS)Discharge Capacity IN IMAX |
MLV Response Time |
||||
|
LYSPD06B |
100-300Vac |
320Vac |
3kA |
6kA |
L-N:1250 L-PE:1630 N-PE:1590 |
25nS |
|

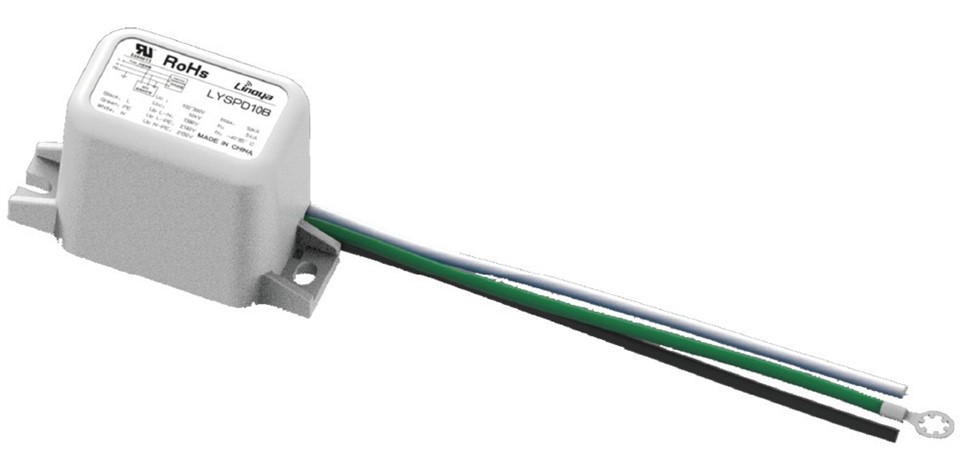

LYSPD10B |
100-300Vac |
320Vac |
5kA |
10kA |
L-N:1390 L-PE:2140 N-PE:2150 |
25nS |
|
LYSPD20B |
100-300Vac |
320Vac |
10kA |
20kA |
L-N:1830 L-PE:2730 N-PE:2670 |
25nS |
|
LYSPD10B-480 |
300-500Vac |
510Vac |
5kA |
10kA |
L-N:1860 L-PE:2370 N-PE:2420 |
25nS |
|
LYSPD20B-480 |
300-500Vac |
510Vac |
10kA |
20kA |
L-N:2160 L-PE:2750 N-PE:2810 |
25nS |
|
Model Rated Voltage Max Voltage |
(8/20uS) Discharge Capacity IN IMAX |
MLV Response Time |
||||
|
LYSPD06C |
100-300Vac |
320Vac |
3kA |
6kA |
L-N:1250 L-PE:1640 N-PE:1610 |
25nS |
|
LYSPD10C |
100-300Vac |
320Vac |
5kA |
10kA |
L-N:1810 L-PE:2690 N-PE:2660 |
25nS |
|
LYSPD20C |
100-300Vac |
320Vac |
10kA |
20kA |
L-N:1380 L-PE:2100 N-PE:2050 |
25nS |
|
LYSPD10C-480 |
300-500Vac |
510Vac |
5kA |
10kA |
L-N:1560 L-PE:2170 N-PE:2240 |
25nS |
|
LYSPD20C-480 |
300-500Vac |
510Vac |
10kA |
20kA |
L-N:2010 L-PE:2770 N-PE:2780 |
25nS |
|
Model Rated Voltage Max Voltage |
(8/20uS) Discharge Capacity IN IMAX |
MLV Response Time |
||||
|

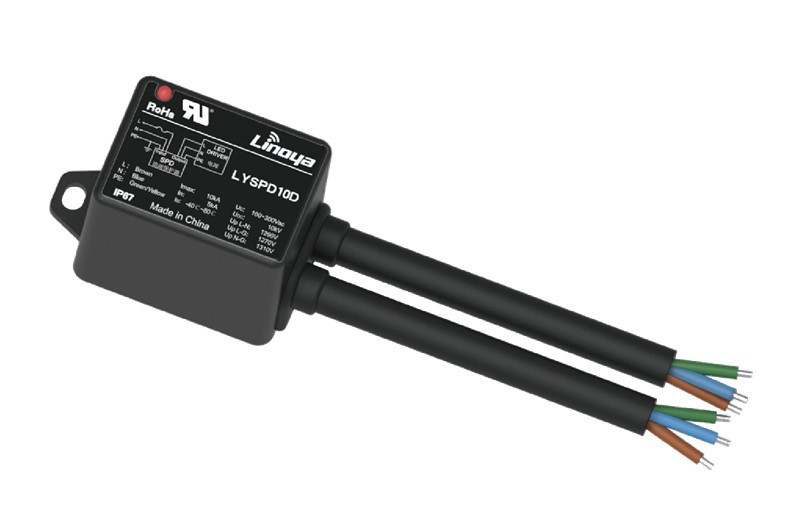

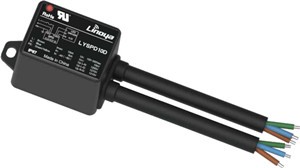

LYSPD10D |
100-300Vac |
320Vac |
5kA |
10kA |
L-N:1180 L-PE:1240 N-PE:1220 |
25nS |
|
LYSPD20D |
100-300Vac |
320Vac |
10kA |
20kA |
L-N:1220 L-PE:1260 N-PE:1220 |
25nS |
|
LYSPD10D-480 |
300-500Vac |
510Vac |
5kA |
10kA |
L-N:1580 L-PE:1570 N-PE:1580 |
25nS |
|
LYSPD20D-480 |
300-500Vac |
510Vac |
10kA |
20kA |
L-N:1950 L-PE:1950 N-PE:1980 |
25nS |
|
LYSPD10D-Class2 |
100-300Vac |
320Vac |
5kA |
10kA |
L-N:1200 |
100nS |
|
LYSPD20D-Class2 |
100-300Vac |
320Vac |
10kA |
20kA |
L-N:1380 |
100nS |
|
Model |
Rated Voltage |
Max Voltage |
Discharge Capacity IN(A) IMAX(A) |
Anti-surge capability UOC(A) ISC(A) |
MLV |
Response Time | Accreditation |

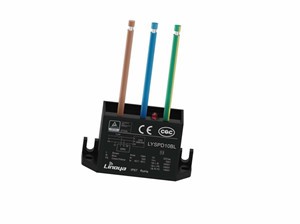

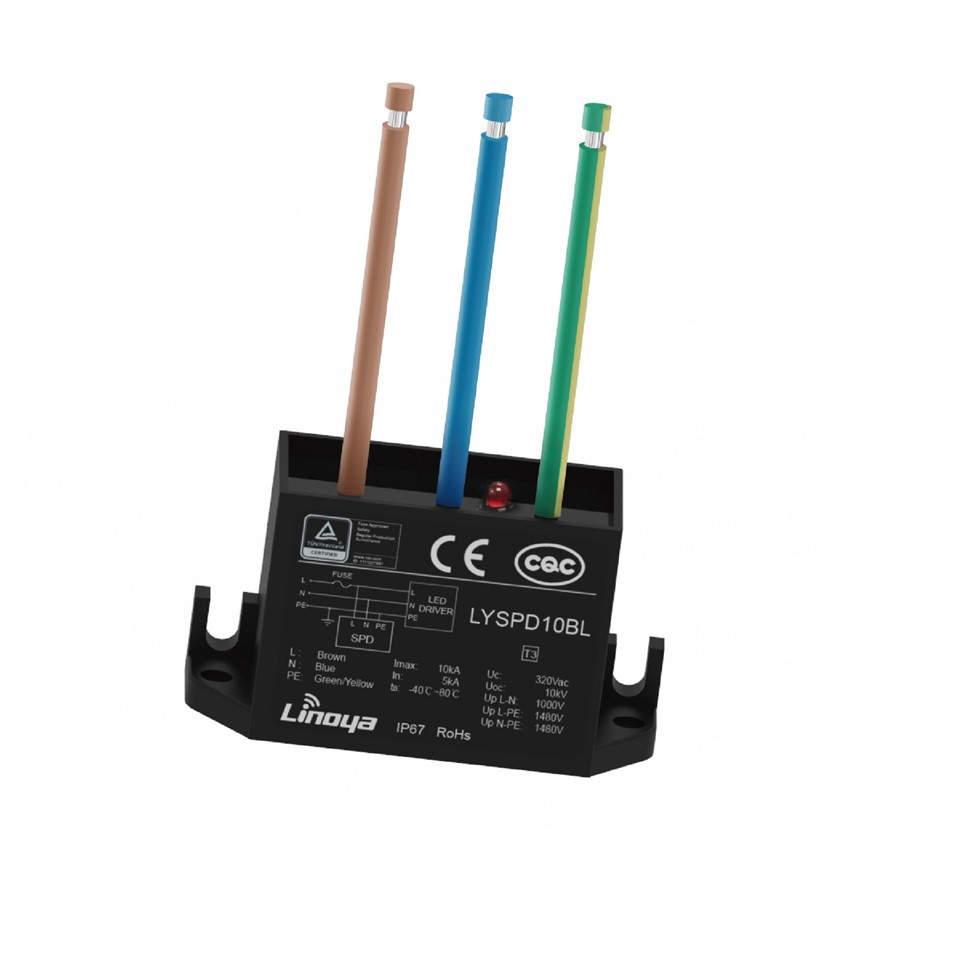

| LYSPD10BL | 100-300 | 320 | 5kA 10kA | 5kA 10kA |
L-N:1180 L-PE:1240 N-PE:1220 |
<25ns | TÜV & CE |
Wide voltage range, low residual voltage, fast response time, compact size, space-saving differential mode, common mode full protection, stable performance and high quality.
